Applications :
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
for garden use and irrigation.
Operating conditions :
Maximum fluid temperature up to +35℃
Maximum sand content:0.25%
Maximum immersion depth:100m.
Minimum well diameter:4”

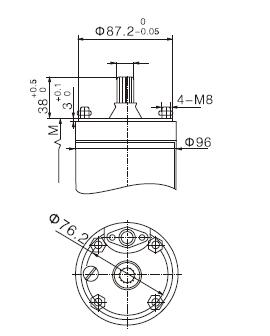

Motor :
Rewind able motor or Full obturnated screen motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with special start-up control box
Pumps are designed by casing stressed
NEMA dimension standards.
Special features available
Other voltages.
Frequency 60Hz.
Other mechanical seal.
Equip with Auto-control box.
Warranty:1 year
(according to our general sales conditions).
