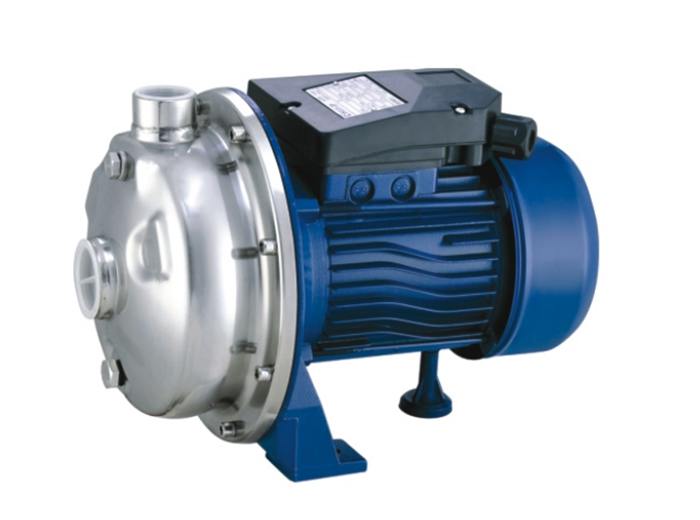

PUMP
. AISI 304 pump body
. AISI 304 shaft
. Max. Liquid temperature:+60℃
MOTOR
. Motor with copper winding
. Shaft:Stainless steel welded shaft
. Insulation class:B or F
. Protection class:IP*4
. Max. temperature:+40℃
. Cooling:External ventilation
FEATURES
. Axial suction and radial discharge
. Compact structure & coaxial installation.The pump is directly
Connected with the motor.
. Convenient installation with threaded inlet and outlet.
. Corrosion resistance,AISI 304 stainless steel.
PUMP INSTALLATION AND APPLICATION
It is applicable to household water supply,equipment support, pipeline pressurization,garden watering,vegetable greenhouse watering,fish farming and poultry raising,industrial and mining, water supply and drainage o enterprises and high-rise buildings, central air conditioner and centralized heating circulation system, etc.
