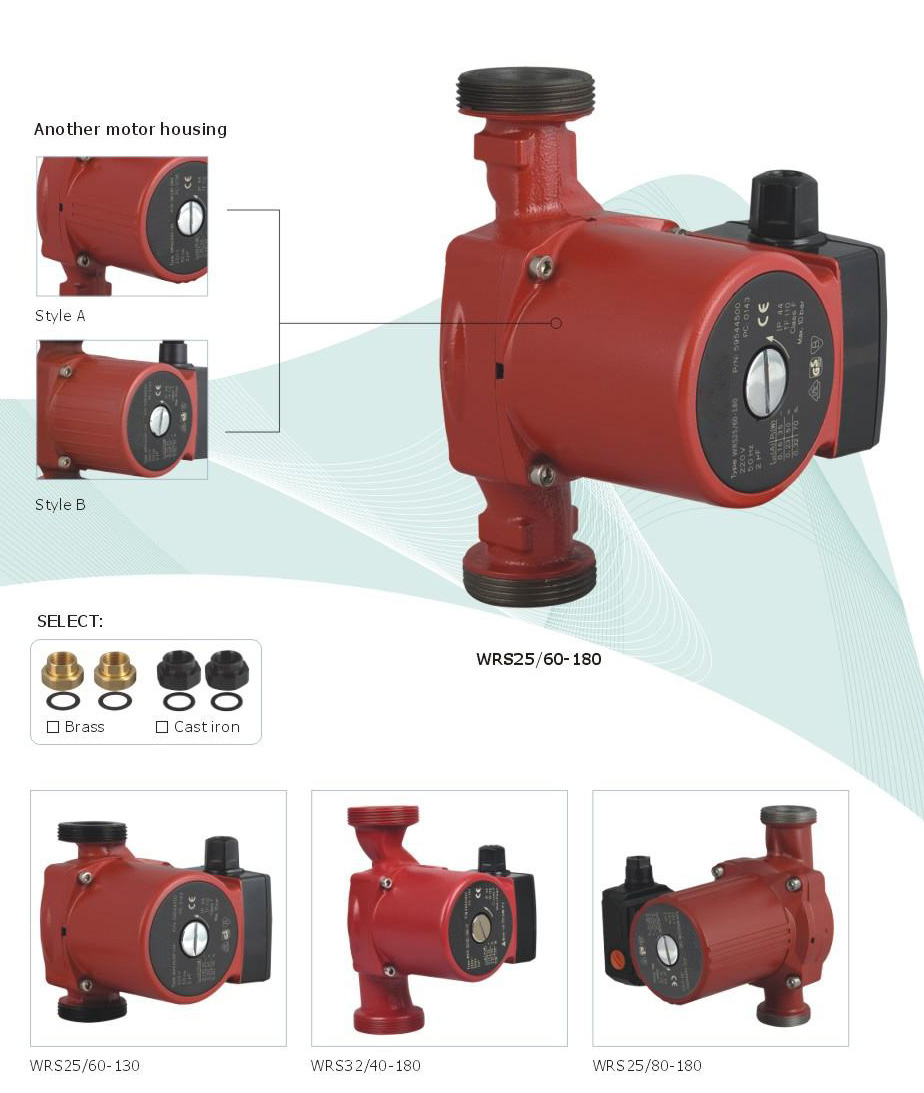

WRS25/60-130 Circulation Pump

 CONSTRUCT
PUMP
Pump Body: Cast Iron/Brass
Impeller: PA66/stainless steel
Mechanical Seal:Carbon/Ceramic/Stainless Steel
MOTOR
Single Phase
Heavy duty contiuous work
Pump shell: aluminium
Shaft: ceramic
Insulation: Class B/Class F
Protectiom: IP44/IP54
Cooling:External Ventilation


Share

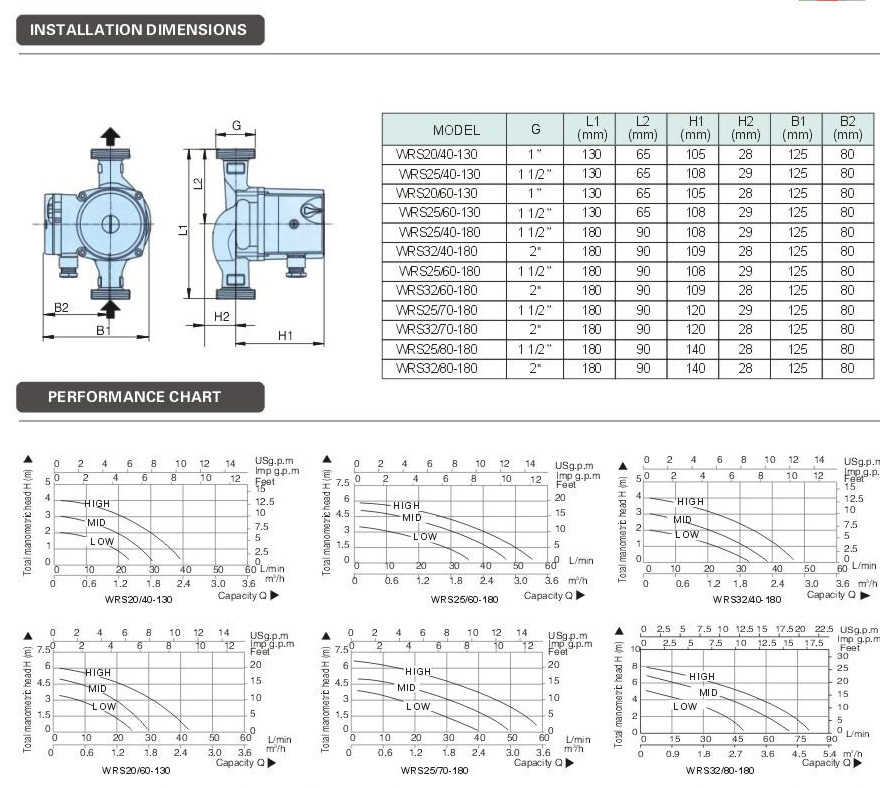

  • Overall Dimension
  • Performance Curves

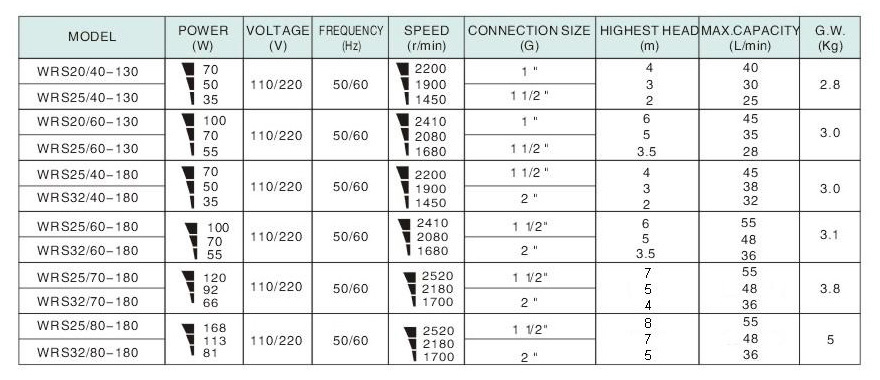

  • Technical Parameter List
