PUMP
. Max.immersion depth:5m
. Max.liquid temperature:+40℃
. Fluid temperature up to:+35℃
. Cast Iron Pump Body
. Aluminum Impeller
. 8m Cable Length
MOTOR
. Copper winding
. Single Phase/Continuous Work
. Motor Housing:Aluminum
. Built-in thermal protector
. Shaft:Stainless steel welded shaft/45# steel be electroplated
. Insulation class:B or F
. Protection class:IP*8
PUMP INSTALLATION AND APPLICATIONS

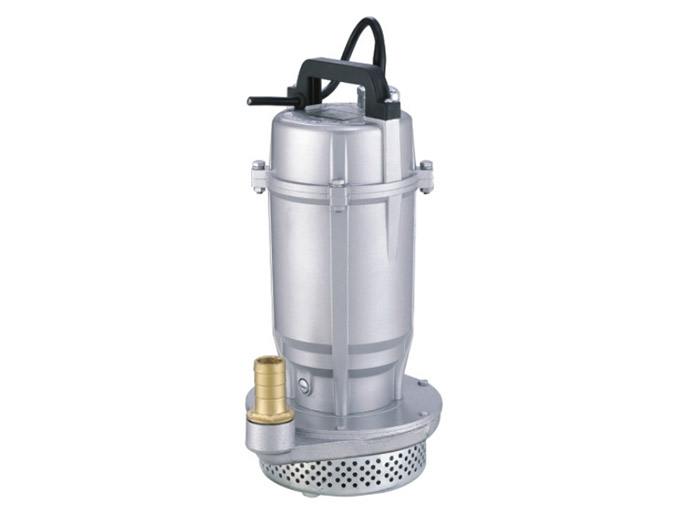

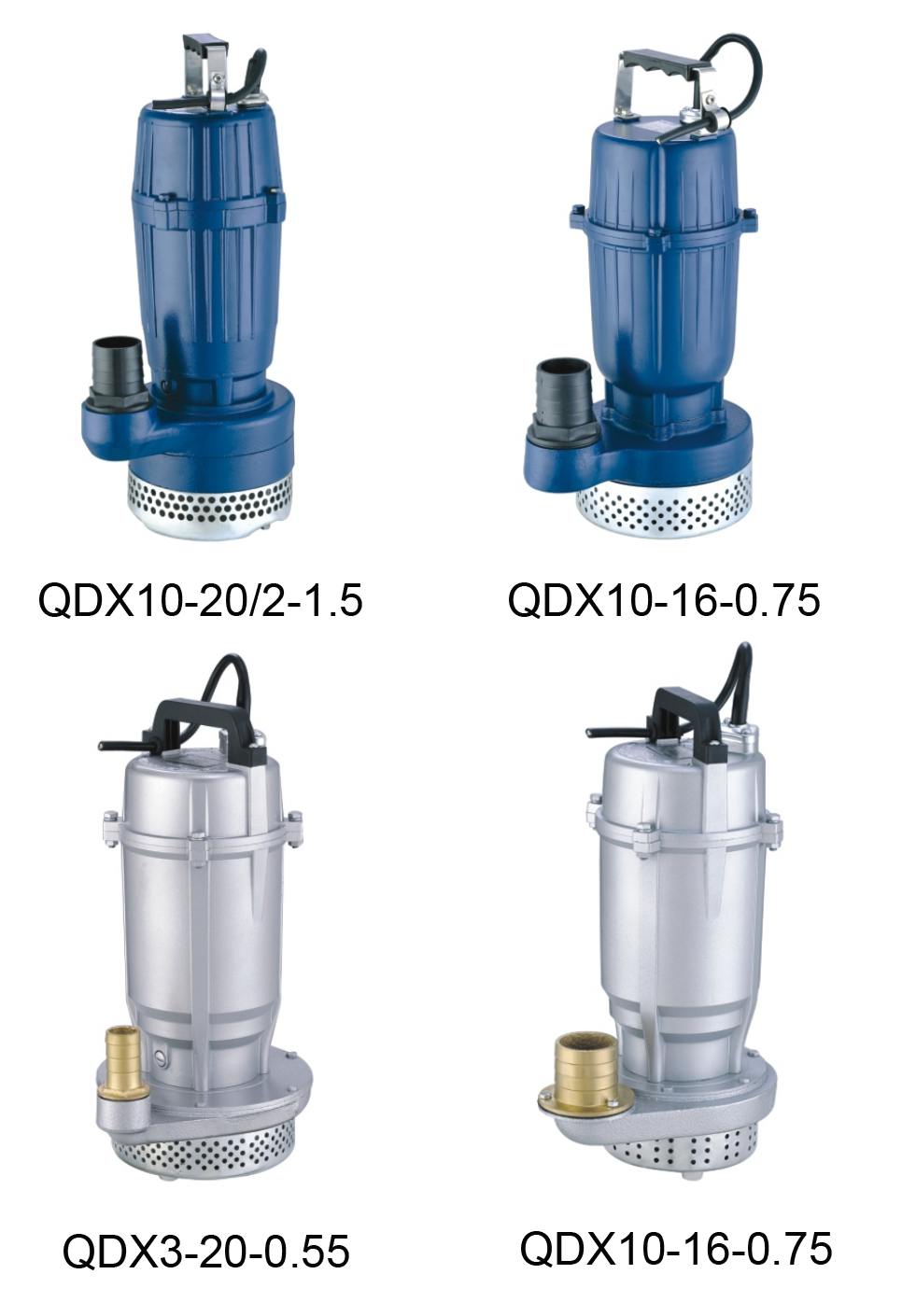

QDX series vertical submersible pumps are fitted with an open or closed impeller,and are suitable for water cluster boxes,farmland, industrial & mining enterprises,construction sites,ship and family, and characterized by less volume,light weight and convenient operation etc.
