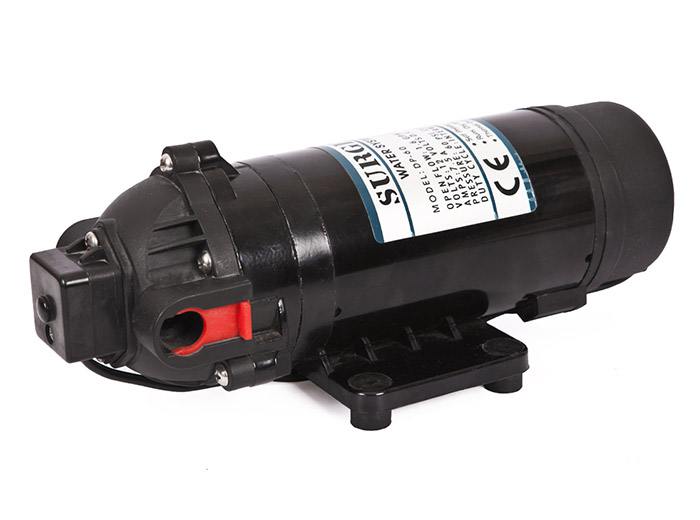

High Pressure Diaphragm Pump
Features:
.Permanent magnet and Intermittent duty
.Built-in pressure switch automatically starts and stops
.Pump when faucets is opvened and closed
.Self-priming so pump can be located above water tank runs for extended periods of time without damage built-in thermal protector

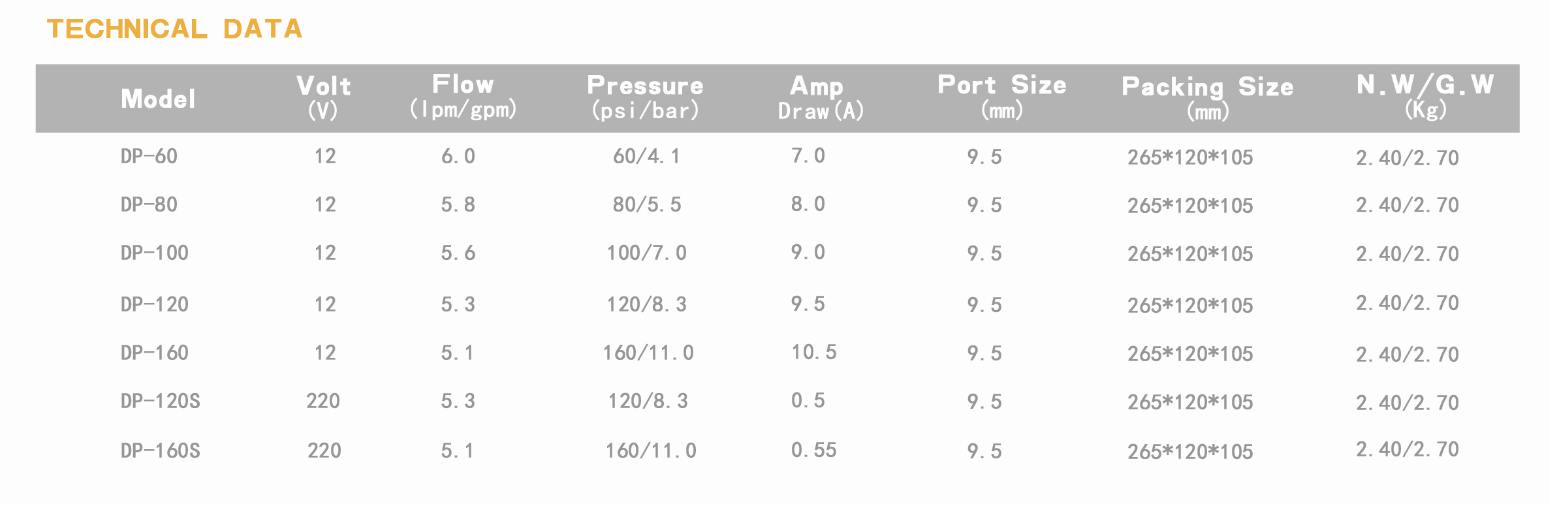

Pump Design: 3 Chamber Diaphragm
Open Flow: 6LPM
Port Size: 3/8’(9.5mm)Hose Barb
Pressure Max: 60~160PSI(11Bar)
Diaphragm Material: Santoprene
Check Valve Made: EPDM or Viton
Voltage: 12V,24V DC,120V,22V,230V AC
Liquid temp: 140”F(60℃) Maximum
Body Material: polypropylene
Spring Material: Stainless Steel
