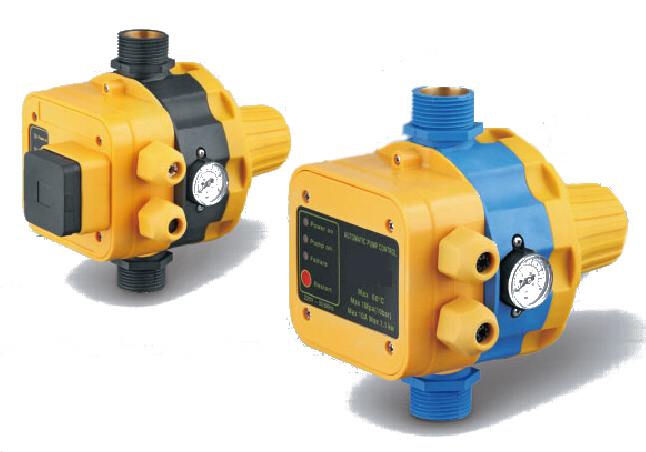

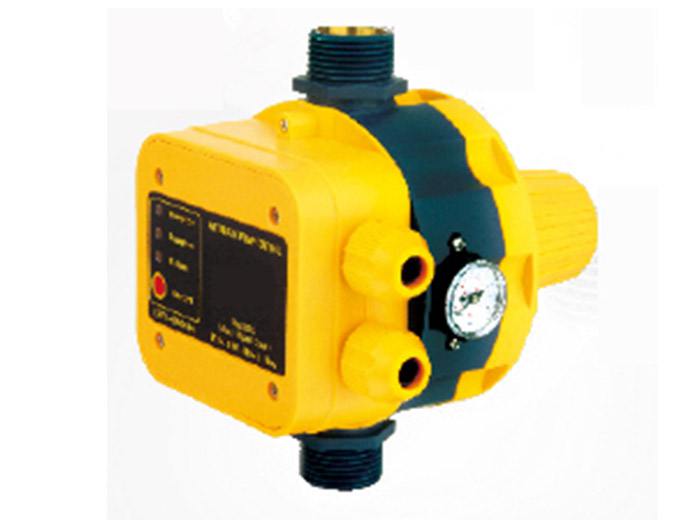

JTDS-12 Electronic Control

Descriptions:

1. Rated Voltage:110V/230V

2. Max. Current: 10(6)A

3. Frequency: 60HZ/50HZ

4. Max. Power: 1.1KW/2.2KW

5. Joint Screw:G1"

6. Starting Pressure:1.5bar/2.2bar

7. Max Working Pressure: 10bar

8. Protection Grade: IP65

9. Max Operating Temperature: 60℃

10. Application: Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump

Function:

1. Start and stop the pump automatically

2. Protect the pump from damage caused by dry-running
