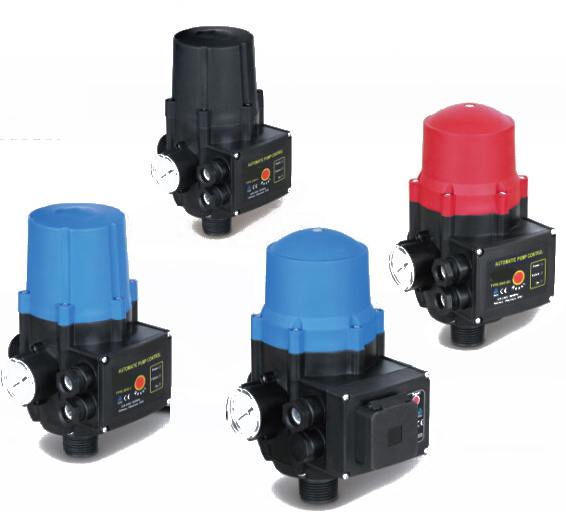

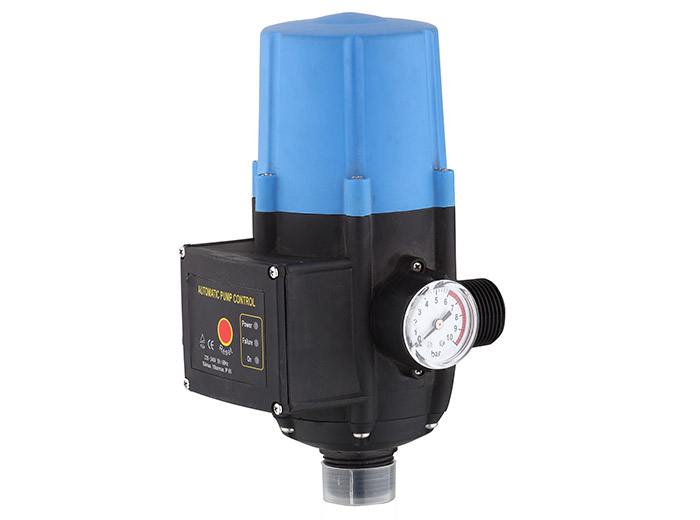

JTDS-2 Electronic Control

Descriptions:

1. Rated Voltage:110V/230V

2. Max. Current: 10(6)A

3. Frequency: 60Hz/50HZ

4. Max. power: 1.1KW

5. Starting Pressure:1.5bar/2.2bar

6. Max. Working Pressure: 10Bar

7. Joint Screw: G1"

8. Protection Grade: IP65

9.Max Operating Temperature: 60℃

10. Application: Self-Priming Pump/Jet Pump/ Garden Pump/Clarified water Pump

Function:

1. Start and stop the pump automatically

2. Protect the pump from damage caused by dry-running

JTDS-2 Electronic Control
