Descriptions:
1. Rated Voltage:110V/230V
2. Max. Current: 30(16)A
3. Frequency: 60HZ/50HZ
4. Max. Power: 2.2KW (220V-240V) 1.1KW(110V-120V)
5. Joint Screw:G1" G1 1/4"
6. Starting Pressure:1.0bar/1.5bar/2.2bar
7. Max Working Pressure: 10bar
8. Protection Grade: IP65
9. Max Operating Temperature: 60℃
10. Application: Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump
Function:
1. Start and stop the pump automatically
2. Protect the pump from damage caused by dry-running
3. Examine the water automatically
4. After cutting-off, start automatically with electric
5. Protect the pump from damage caused by overheat
6. Forced start
State LED:
1. Green led lights up: the unit is off
2. Green led and red led flash alternately (in 1HZ): pump in operation
3. Green led and red led flash alternately (Green led 2.5S, Red led 0.5S, flash alternately 3S/time): pump stops, waiting to start.
4. Red led lights up: system failure: after troubleshooting, restart the unit after the power is turned off for less than 5S can solve the state. （Anytime, press ON/OFF button lasts 3S, red led lights up, the unit is forced protection）.
Description of forced start
When pump stops, press ON/OFF button, green led and red led flash alternately (1HZ): if there was water in the pipe, the pump into constant pressure after 60S delay; if the pipe was in the absence of the water, pump into waiting restarted after 80S delay.

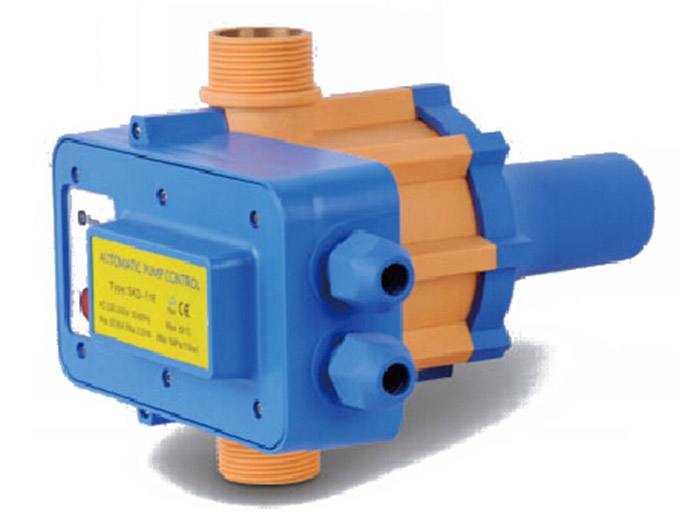

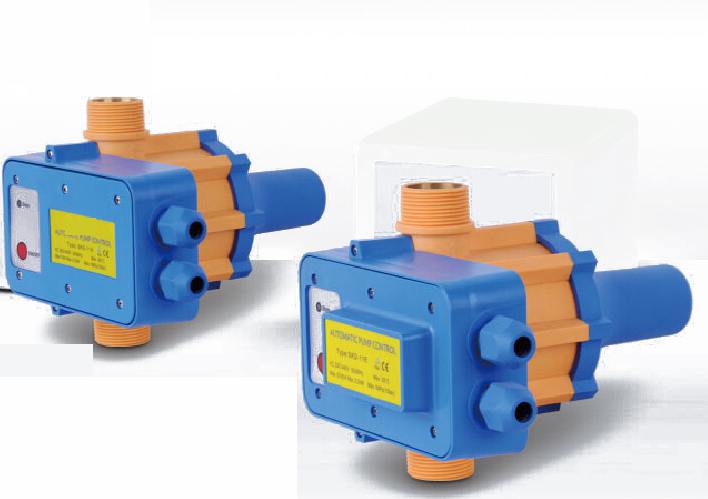

JTDS-9A Electronic Control
