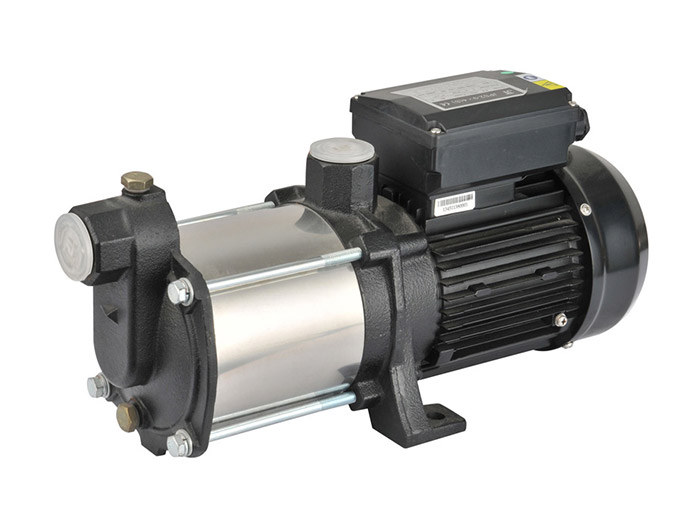

JPS Horizontal Pump

APPLICATIONS

Thin,clean,non-flammable and non-explosive liquid containing no solid granules and fibres.

Garden sprinkler,rain water collection.

Pressure boosting of tank.

Air-conditioning and cooling system,industrial washing and other Special applications.

OPERATING CONDITIONS

Liquid temperature form: +5℃~+60℃

Max.environmental temperature: +50℃

Max.working pressure: 10 bar

MOTOR

2-pole induction motor

Single-phase with thermal protector

Insulation class B or F

Protection IP 54

Continuous duty
