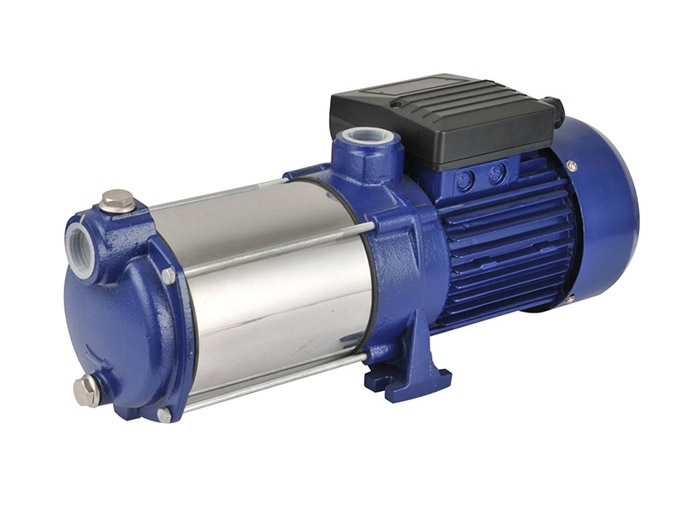

MH Horizontal Pump

MOTOR

Single Phase

Heavy Duty Continuous Work

Motor Housing: Aluminum

Shaft: Carbon Steel/Stainless Steel

Insulation: Class B/Class F

Protection: IP44/IP54

Cooling:External Ventilation

OPERATING CONDITIONS

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

220v/50Hz, 230v/50Hz, 110v/60Hz & 115v/60Hz models are available on request.
