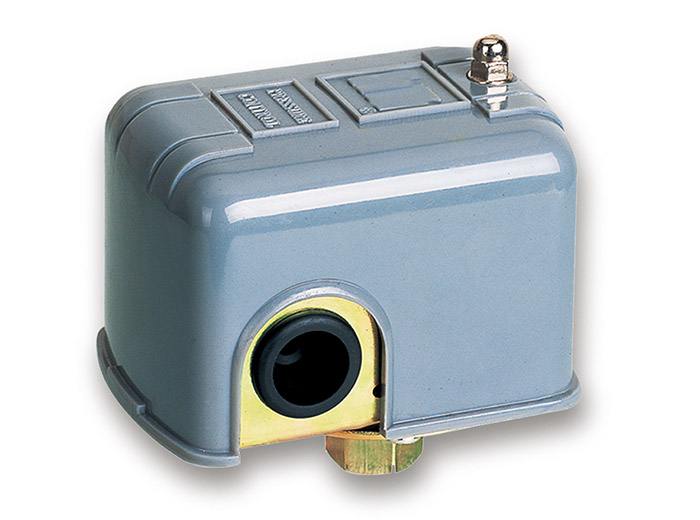

JTBS-2 Pressure Switch

Descriptions:
1. Rated Voltage:110V/230V
2. Max Current:12A/6A
3. Pressure Range:0.8-5.0bar
4. Pressure setting: 1.4-2.8bar  2.1-3.5bar 1.4-4.2bar
5. Joint Screw: Z1/4"
6. Protection Grade:IP20
7. Working temperature:0-55℃
8. Application: Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump

Share

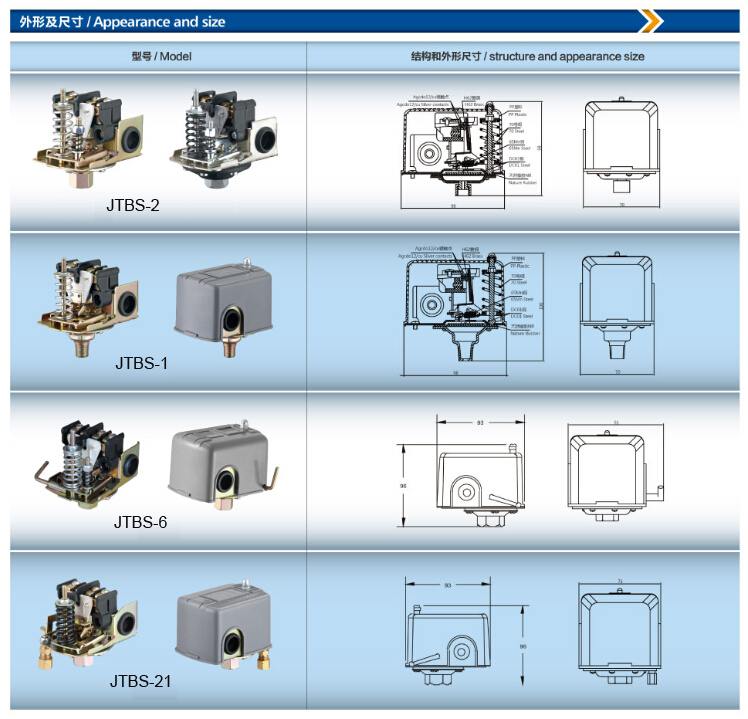

  • Overall Dimension
  • Performance Curves
  • Technical Parameter List

Descriptions:
1. Rated Voltage:110V/230V
2. Max Current:12A/6A
3. Pressure Range:0.8-5.0bar
4. Pressure setting: 1.4-2.8bar  2.1-3.5bar 1.4-4.2bar
5. Joint Screw: Z1/4"
6. Protection Grade:IP20
7. Working temperature:0-55℃
8. Application: Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump


Features:
According to the pressure changes in the pipe, it can open and close the pumps automatically

JTBS-2 Pressure Switch
