JDLF45 Vertical Pump

While JDLF is suitable for slightly corrosive liquid.


Water supply:

Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.


Share

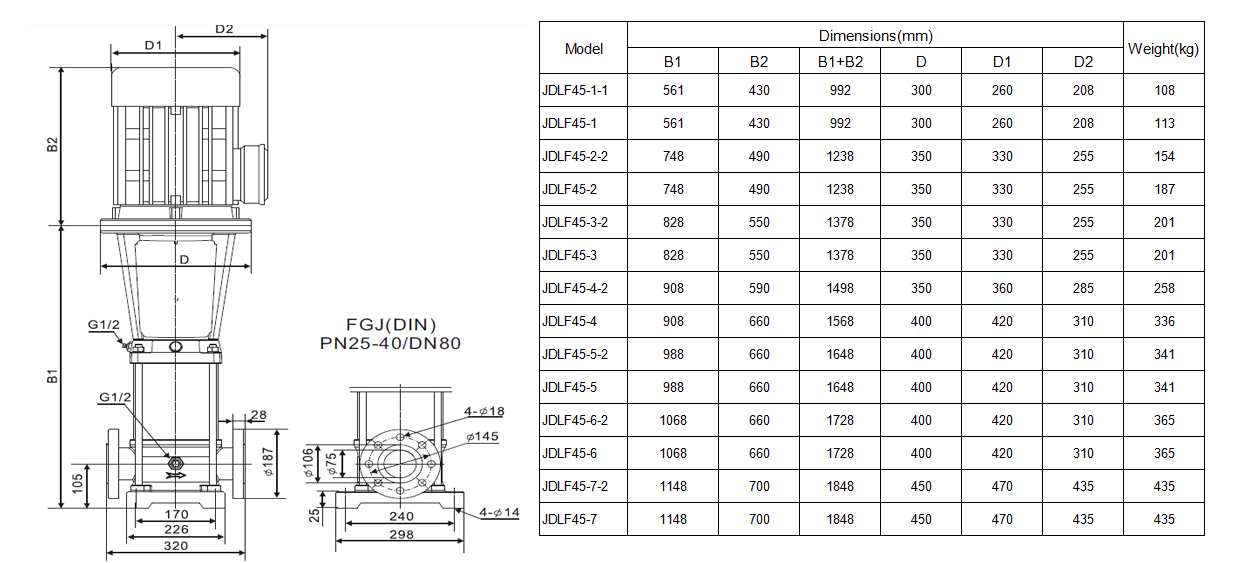

  • Overall Dimension

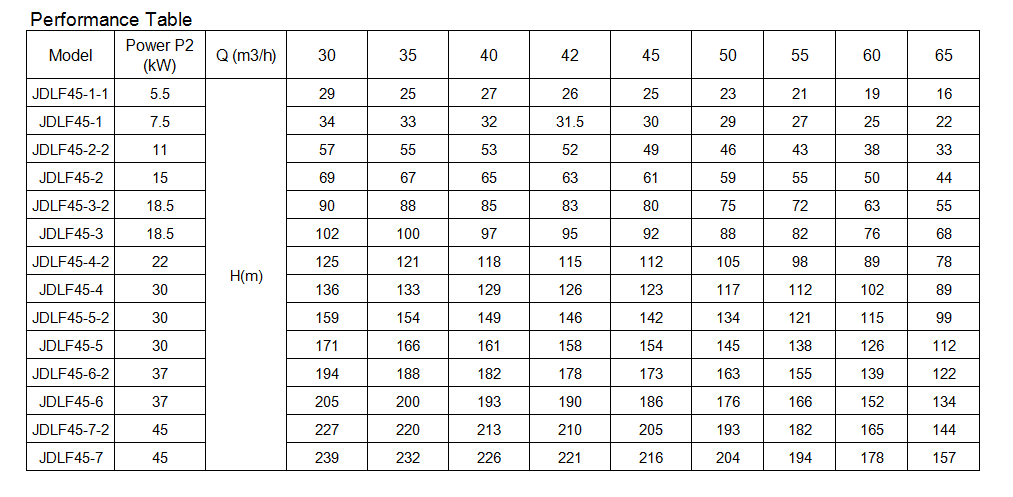

  • Performance Curves
  • Technical Parameter List

JDLF45 Vertical Pump

JDLF45 Vertical Pump

While JDLF is suitable for slightly corrosive liquid.


Water supply:

Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.


Industrial boosting :

Process flow water system, clen-ing system, high-pressure washing system, fire fighting system


Industrial liquid conveying:

cooling and air -condi- tioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali


Water treatment:

Ultrafiltration system, separator, Swimming pool


Irrigation:

Farmland irrigation, irrigation, dripping irrigation


Operation conditions:

Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.

Liquid temperature:-20   ~+104  , Ambient temperature: up to +50

Altitude: up to 1000m


JDLF45 Vertical Pump
